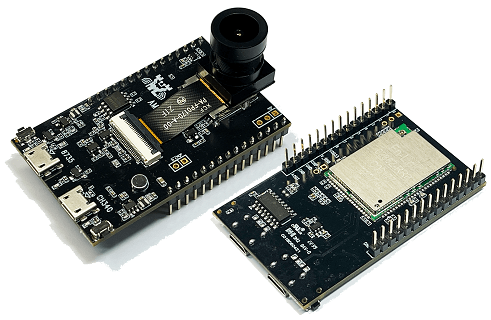

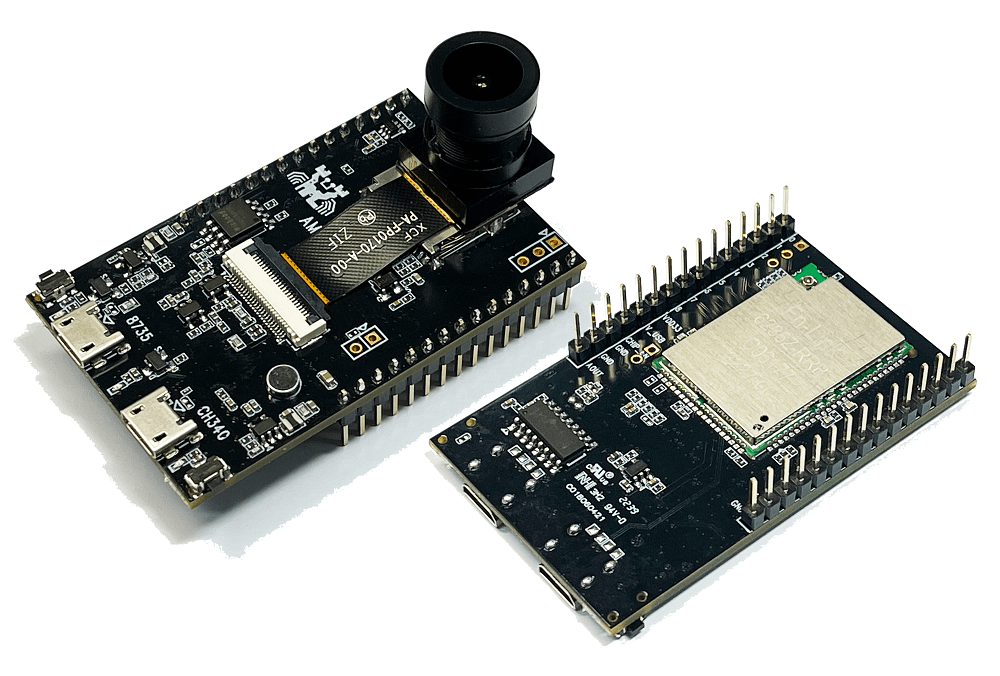

AmebaPro2 Boards

Designed by Realtek

AMB82

MCU

Part Number: RTL8735B
32-bit Arm v8M, up to 500MHz

Memory

768KB ROM
512KB RAM
Supports MCM embedded DDR2/DDR3L memory up to 128MB
External Flash up to 64MB

Key Features

Integrated 802.11 a/b/g/n Wi-Fi, 2.4GHz/5GHz
Bluetooth Low Energy (BLE) 4.2
Integrated Intelligent Engine @ 0.4 TOPS
Ethernet Interface
USB Host/Device
SD Host
ISP
Audio Codec
H.264/H.265
Secure Boot
Crypto Engine

Other Features

2 SPI interfaces
3 I2C interfaces
12 PWM interfaces
4 UART interfaces
8 ADC interfaces
2 GDMA interfaces
Max 59 GPIO

AMB82-MINI

MCU

Part Number: RTL8735B
32-bit Arm v8M, up to 500MHz

Memory

768KB ROM
512KB RAM
Supports MCM embedded DDR2/DDR3L memory up to 128MB
External Flash up to 64MB

Key Features

Integrated 802.11 a/b/g/n Wi-Fi, 2.4GHz/5GHz
Bluetooth Low Energy (BLE) 4.2
Integrated Intelligent Engine @ 0.4 TOPS
Ethernet Interface
USB Host/Device
SD Host
ISP
Audio Codec
H.264/H.265
Secure Boot
Crypto Engine

Other Features

2 SPI interfaces
1 I2C interface
8 PWM interfaces
3 UART interfaces
3 ADC interfaces
2 GDMA interfaces
Max 23 GPIO
