E-Paper - Display Text

Materials

  • AmebaPro2 [ AMB82 MINI ] x 1
  • Waveshare E-Paper [2.9inch E-Paper HAT (D)/ 2.9inch E-Paper V2/ 2.9inch e-Paper Module (B)/ 4.2inch e-Paper Module/ 7.5-inch E-Ink display HAT] x1

Example

Introduction

In this example, Ameba Pro2 board will be used to connect to a Waveshare e-Paper module (2.9inch/ 4.2inch/ 7.5inch) to display texts. The display uses the flexible substrate as base plate, with an interface and a reference system design. You may refer to the official datasheet to know more information about these modules.

Procedure

AMB82 MINI wiring diagram:

2.9inch HAT (D) e-Paper Module
1

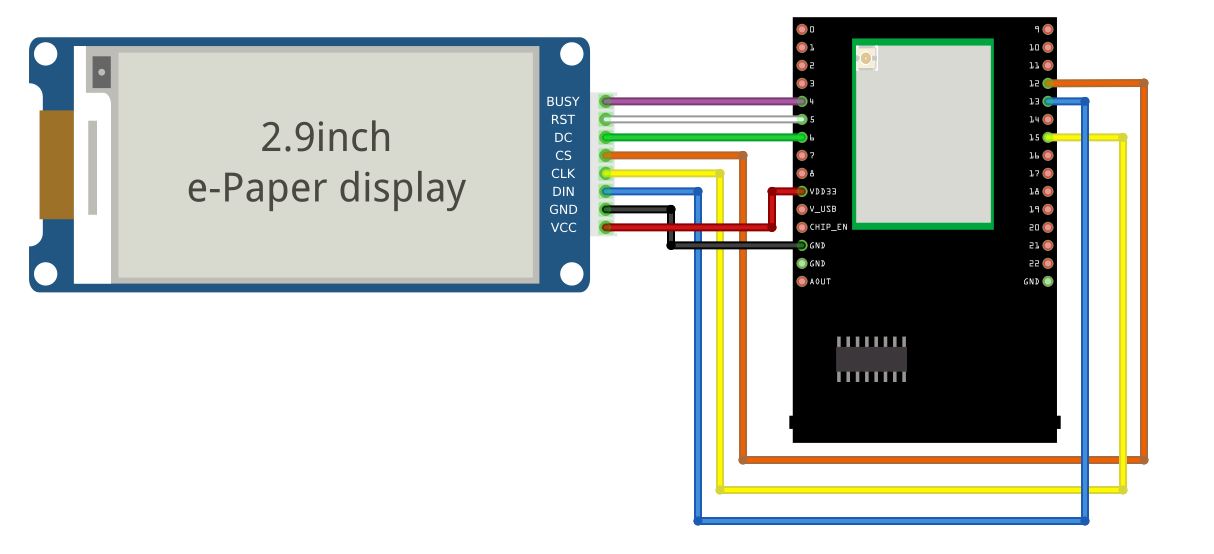

2.9inch E-Paper V2 e-Paper Module/ 2.9inch e-Paper Module (B)
1

4.2inch e-Paper Module
1

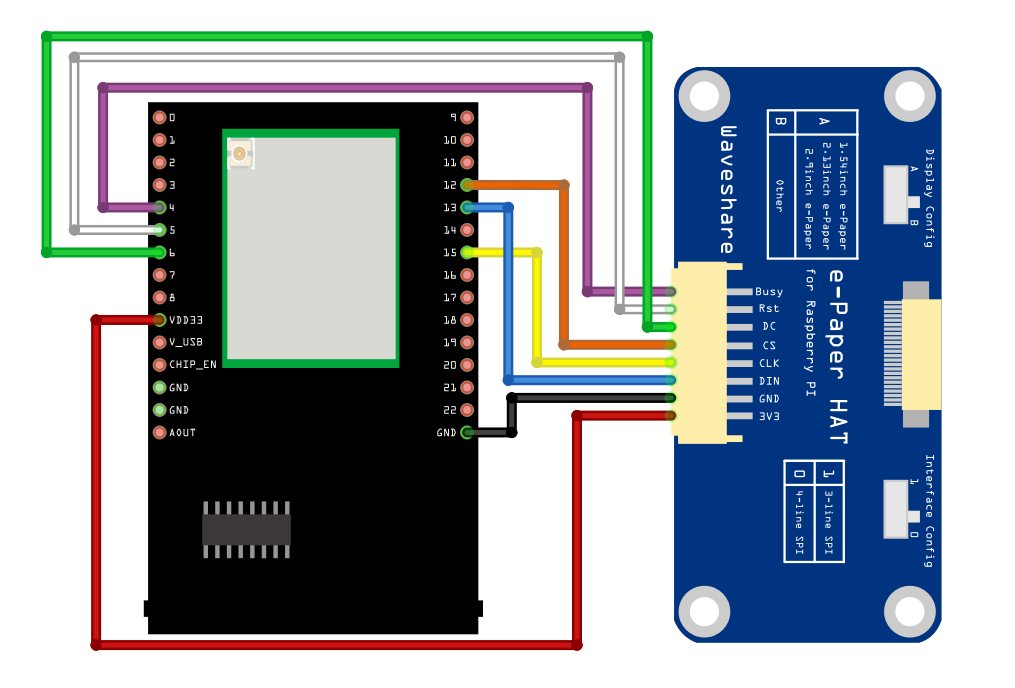

7.5-inch e-Paper Module
Do note that Display Config should be set to B and Interface Config should be set to 0.1

Next, download the Eink zip library, AmebaEink.zip, at https://github.com/ambiot/ambpro2_arduino/tree/dev/Arduino_zip_libraries
Then install the AmebaEink.zip by navigating to “Sketch” -> “Include Library” -> “Add .ZIP Library…”.

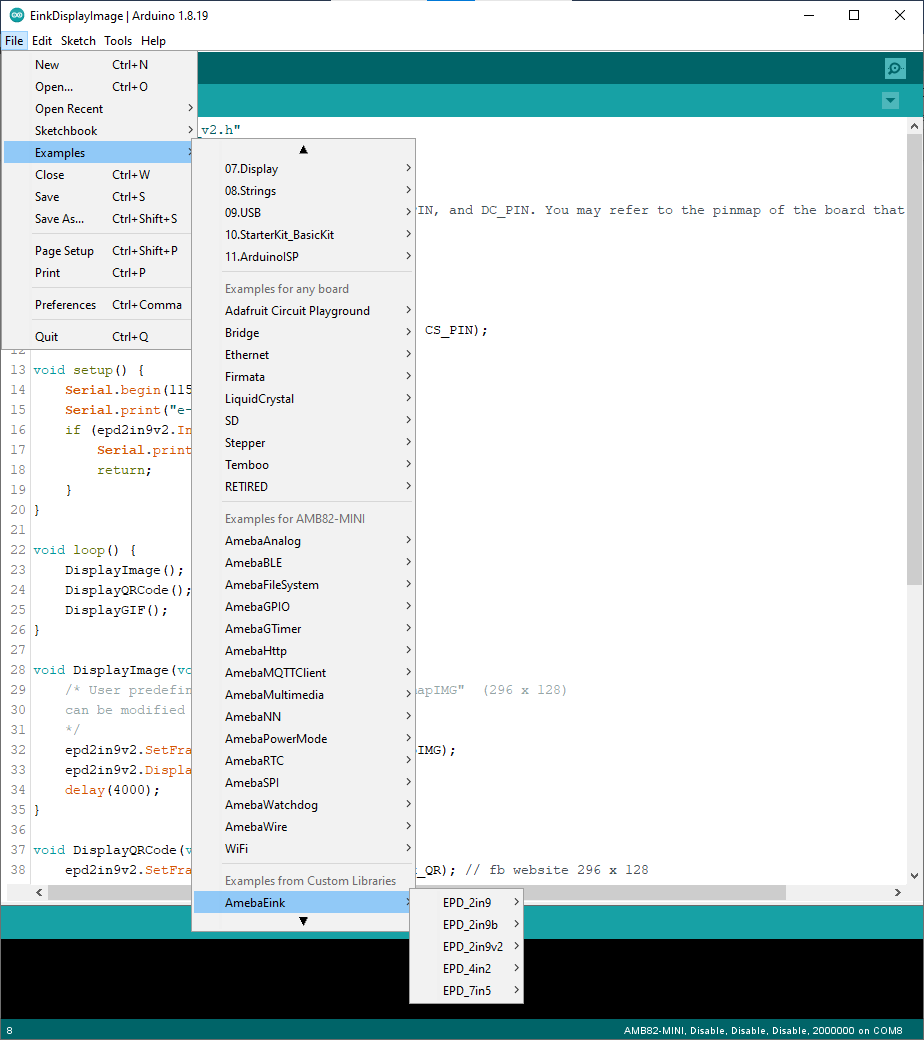

Eink examples are categorised based on the size and modules of the e-Paper display.

1

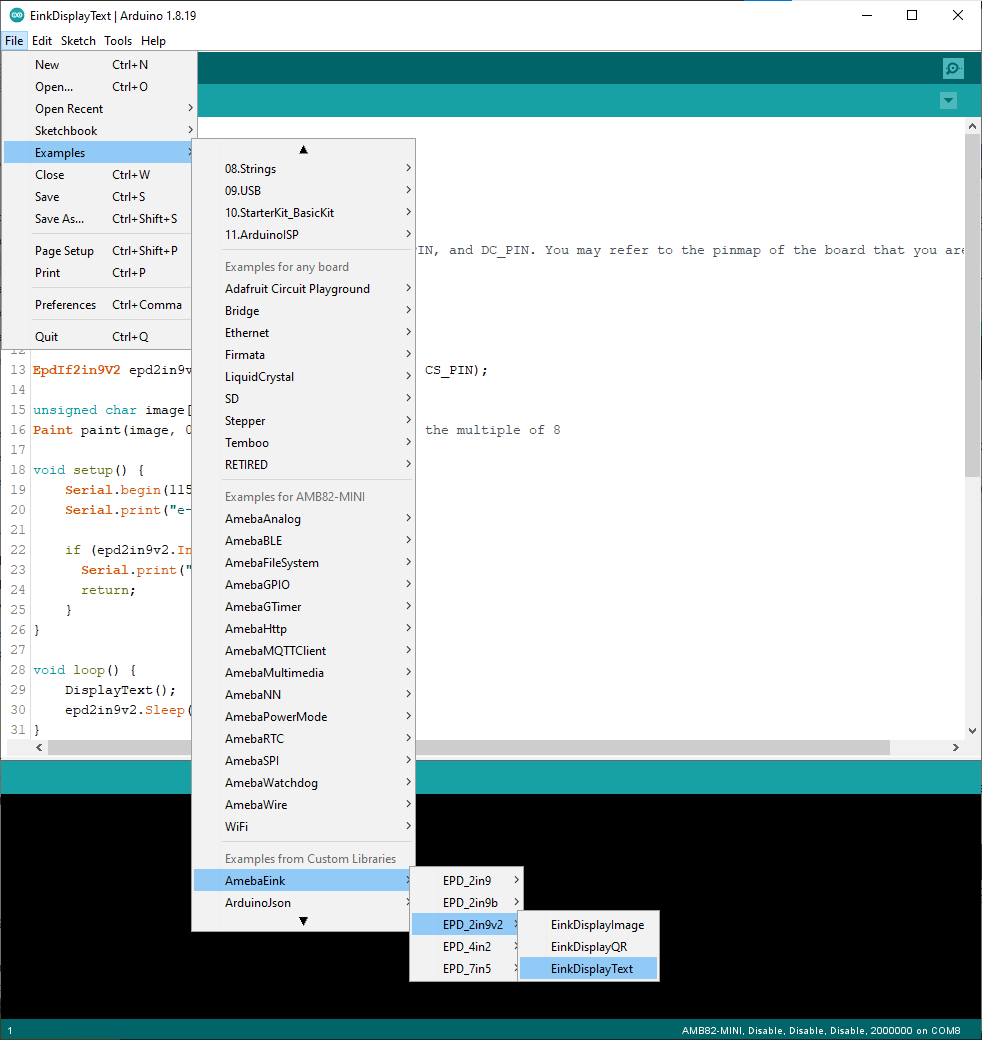

Open one of the “EinkDisplayText” examples. For example, “File” → “Examples” → “AmebaEink” → “EPD_2in9v2”-> “EinkDisplayText”:

1

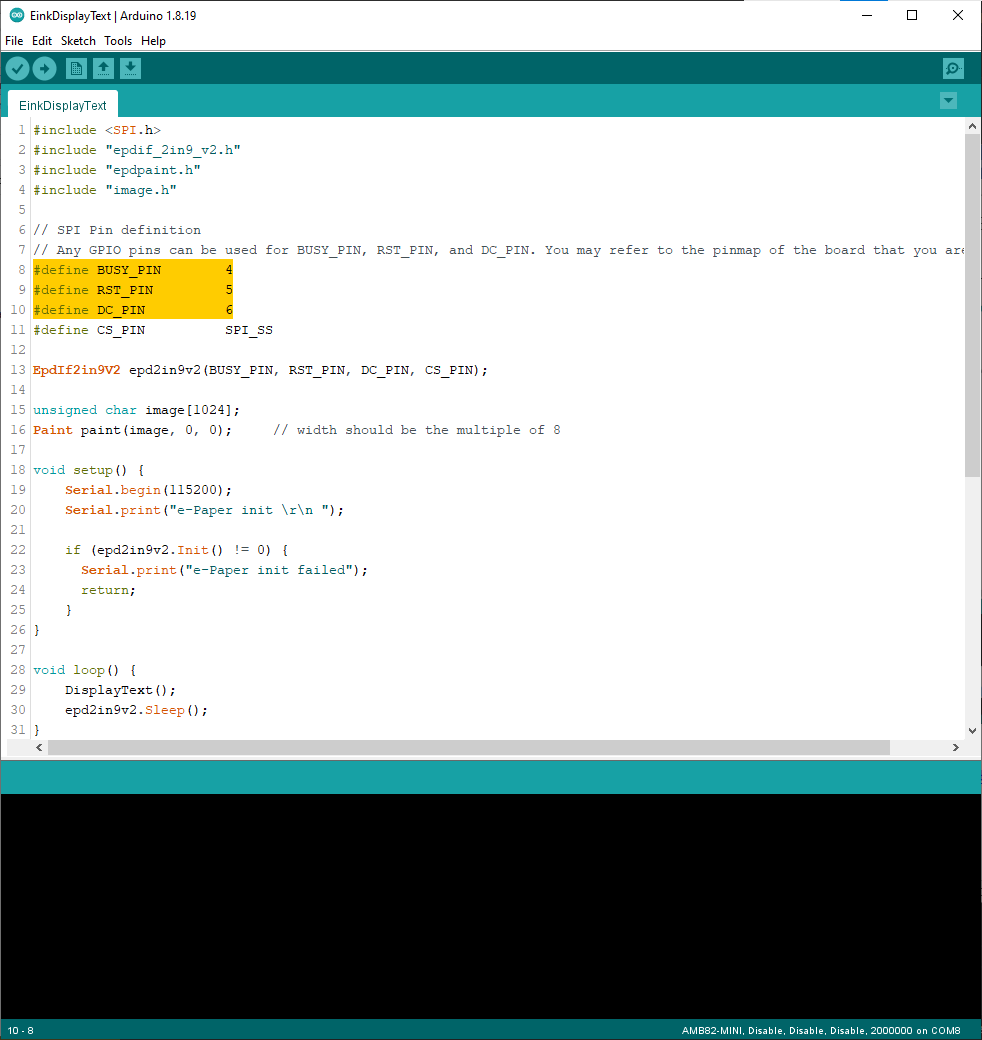

You may choose any GPIO pins for Busy, Reset and DC pin. You can refer to AMB82 MINI’s pinmap.

1

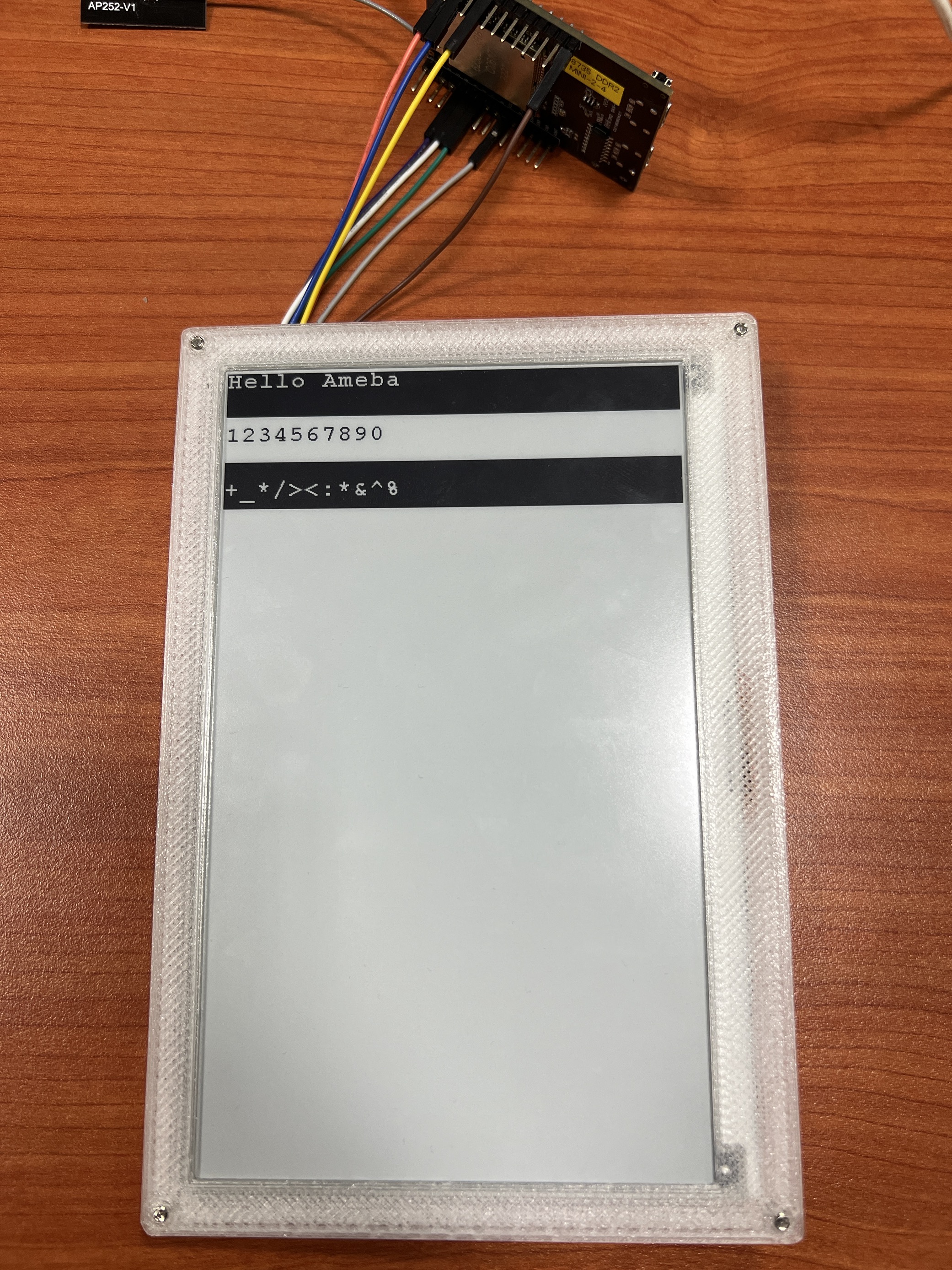

Upload the code to the board and press the reset button after uploading is done. You will find these texts displayed on the boards:

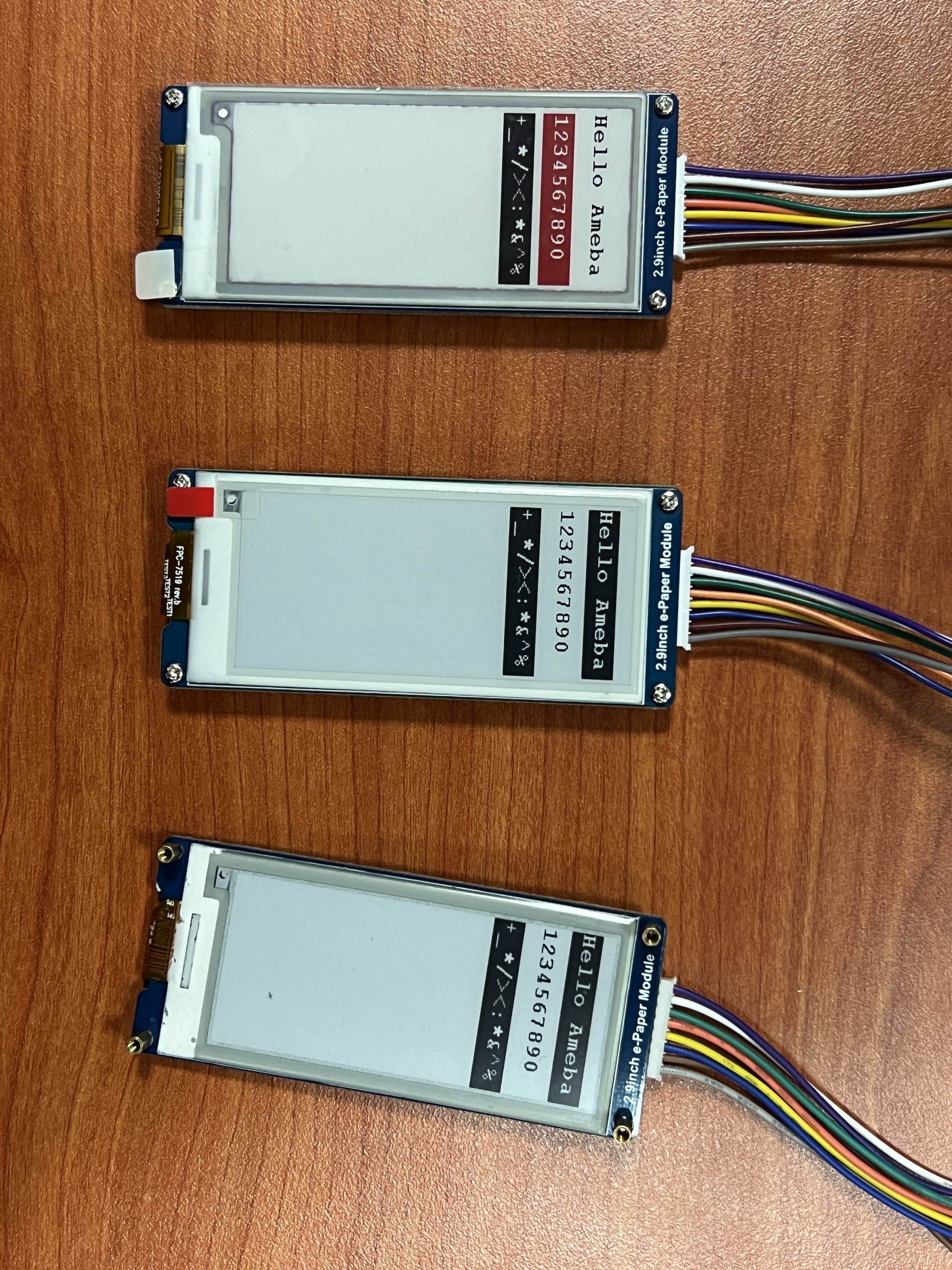

The 2.9-inch e-Paper Module (B) supports three colours—red, black, and white. Therefore, it can display red on the e-Paper display shown on the most left.

1

1

1

Code Reference

[1] We use Good Display GDEH029A1 2.9 Inch / 296×128 Resolution / Partial Refresh Arduino Sample Code to get the e-Paper successfully Display:
http://www.good-display.com/product/201.html
[2] EPD libraries can be obtained from:
https://github.com/waveshare/e-Paper
